Building A Boat In The Lounge Update 21. - it's  time for some action man!

Building A Boat In The Lounge Update 21 - it's time for some action man! Bc9fa54e2264262f57b7c5da366b8b24_zps454540cb

Here's where this project had got to last time
https://sunnyrhyl.forumotion.com/t6879-building-a-boat-in-the-lounge-update-20-a-trailer-for-the-main-feature


Notbad had set himself a target to finish the trailer over Easter but progress was slow

Building A Boat In The Lounge Update 21 - it's time for some action man! Th_PA210825

What with munching Easter eggs and a barbecue he just wasn't hacking it.

Time for action man!

Building A Boat In The Lounge Update 21 - it's time for some action man! Th_4e609f012c4a52167975a0584266b040_zpsyy53j7ct

so I stepped in to the breach to get the project moving at the double

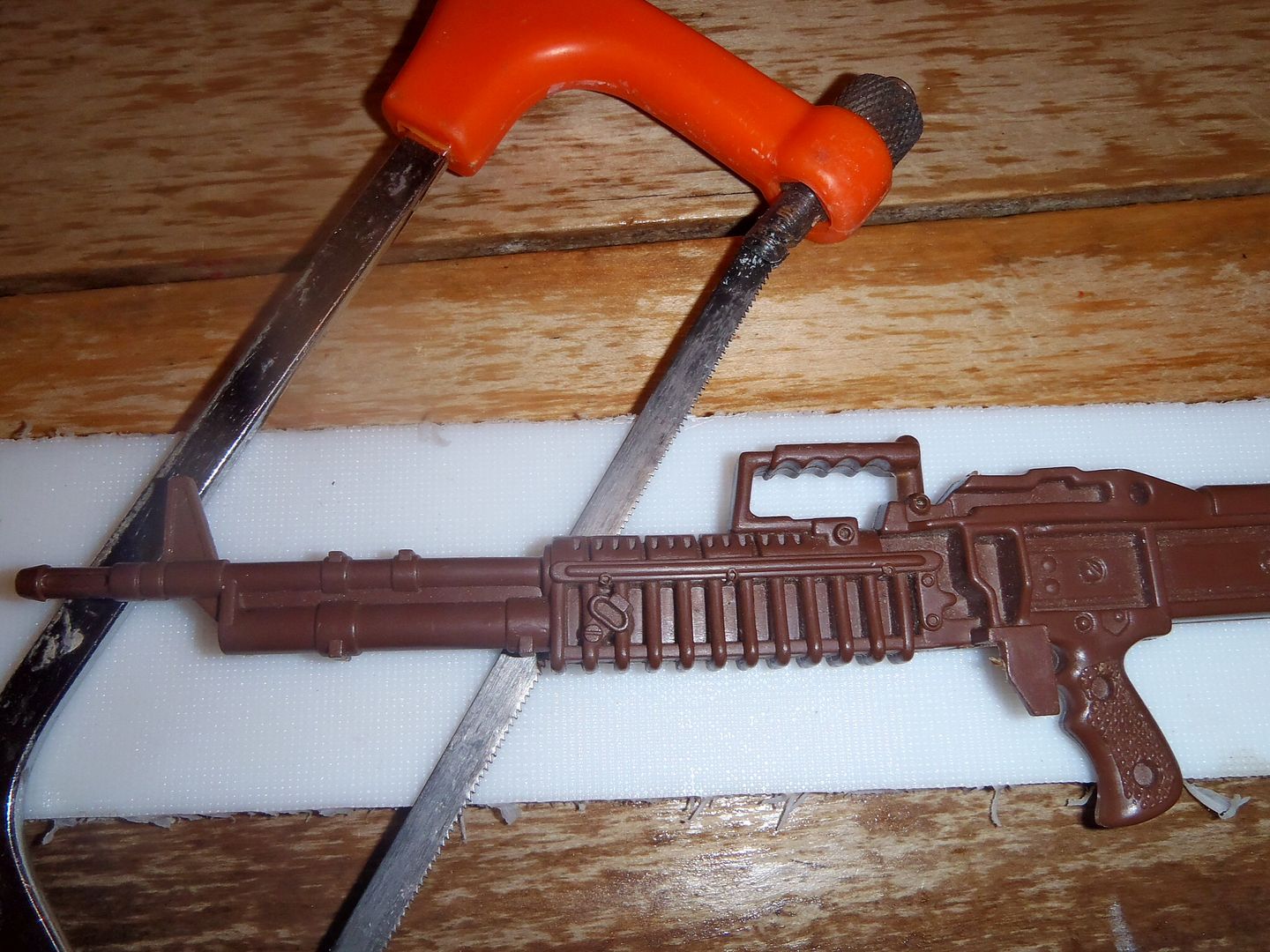

Mmmm! so that's why he was sawing up my favourite weapon!!
Building A Boat In The Lounge Update 21 - it's time for some action man! 5ee712bcebfe3d3232ca8167126e96a2_zpsb7stmwxp

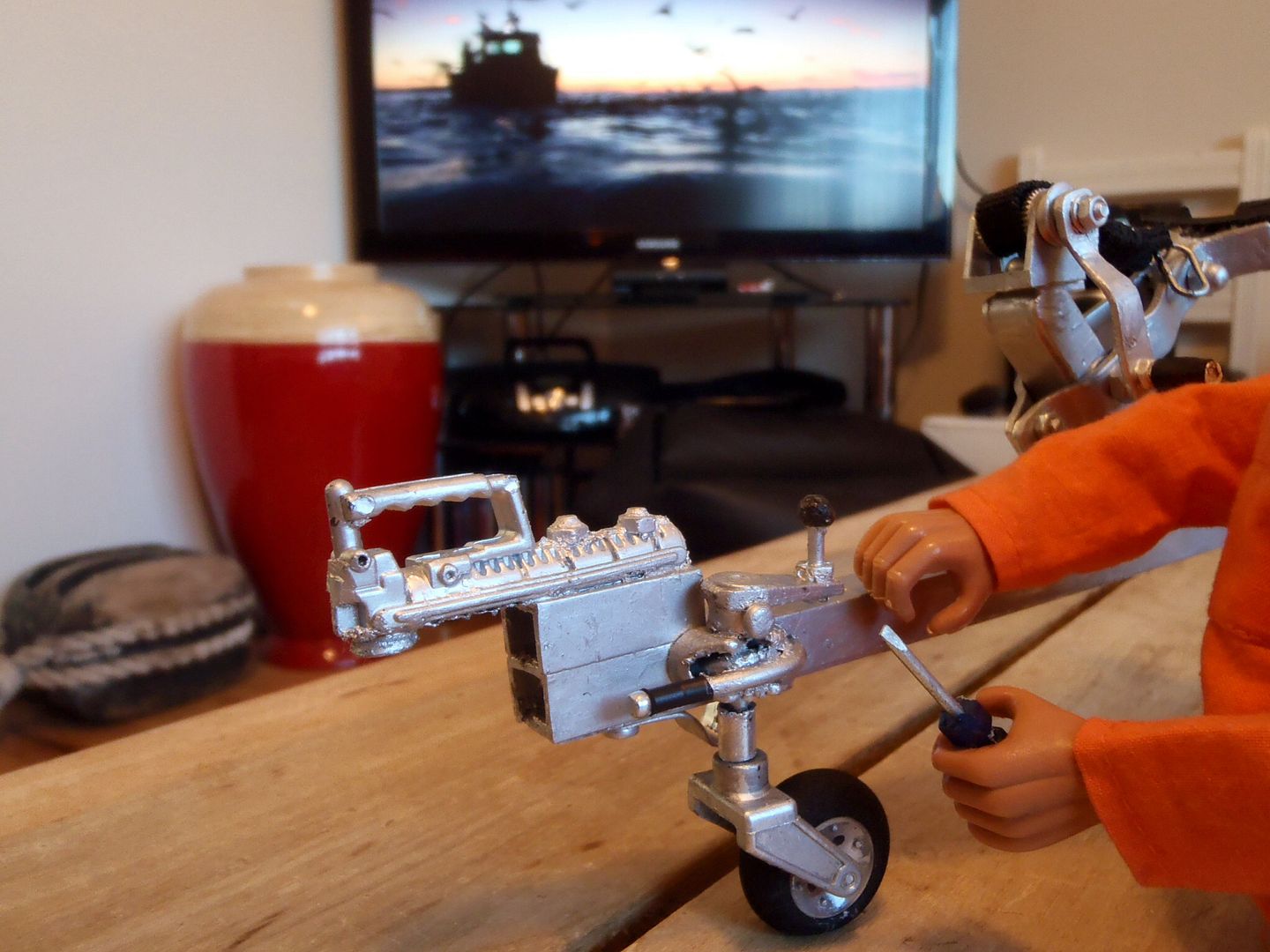

With no written plans to work to it's not gone without a hitch but with a bit of trial and error the geometry came more or less right.

Rolling about under his sofa I found various bits of Lego and stuff and requisitioned 'em for parts
Building A Boat In The Lounge Update 21 - it's time for some action man! 865bfdad749cf5f548dfdfabec24abbf_zpsfcatfoct

Building A Boat In The Lounge Update 21 - it's time for some action man! 9ec16a7a320e6a4397e435cf07ebaa55_zpstg9cmx5d

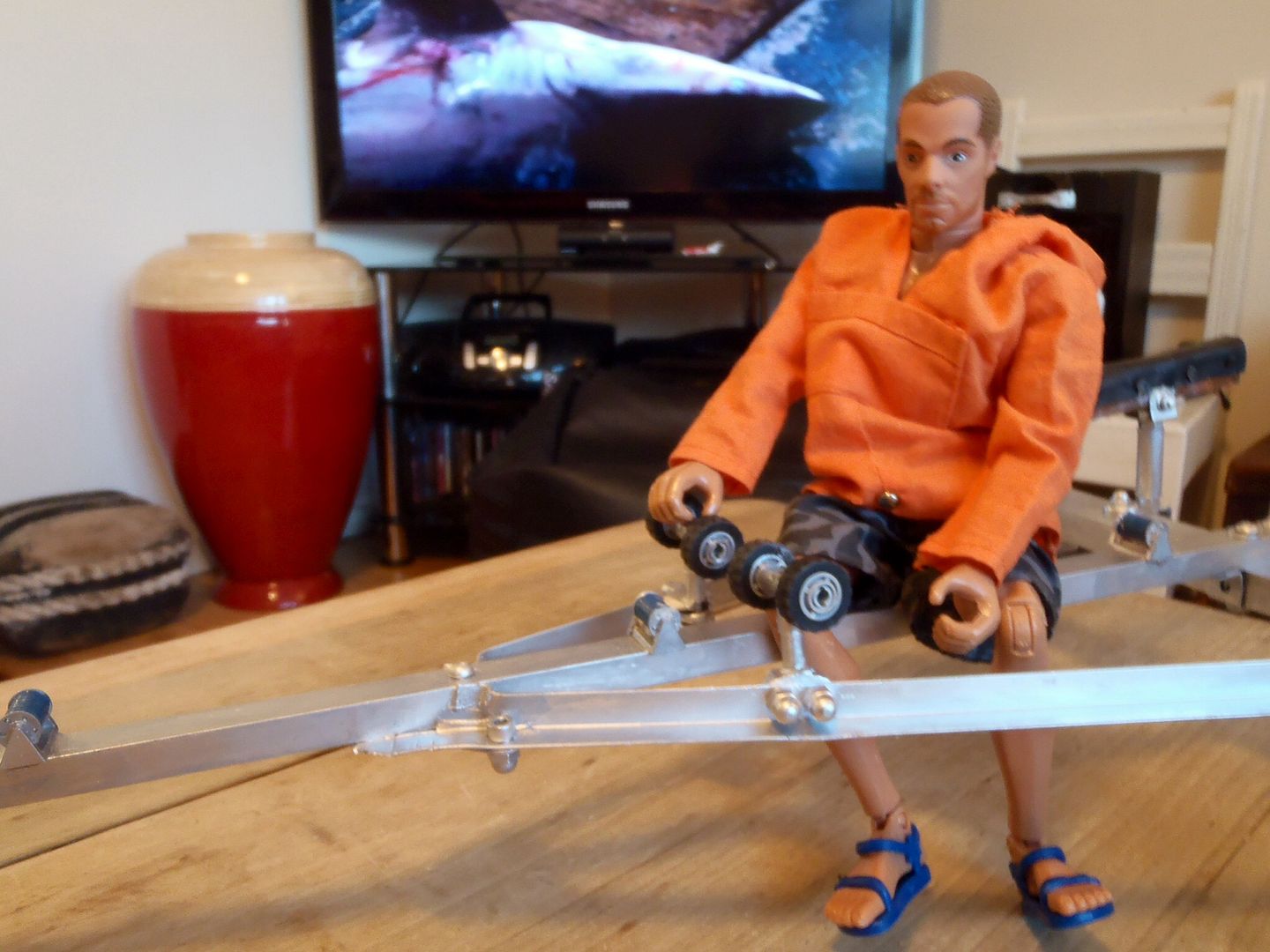

The  first set of main wheels I tried where from an Arduino robot and theoretically to the right scale but somehow they didn't look beefy enough so I switched them for a pair off my jeep, trouble is they are a bit wide for the mudguards


Building A Boat In The Lounge Update 21 - it's time for some action man! B8558bc8ece5f681e292dadabc195bbd_zpspeiwqsaf


Here and there Notbad has fudged the 1/6 scale. Those dome nuts are a bit oversized if you ask me
Building A Boat In The Lounge Update 21 - it's time for some action man! 81aab46699a8ba8d045ca0569e35ce8f_zpsgsycjd8z

A bit too late in the day I discovered scale nuts and bolts for building working model steam engines and assorted lap top screw packs on EBay but I can't spend big money,
so instead I raided his man tin of "bits that will come in handy one day" for camera and spectacle screws and borrowed the terminal bolts from his electrical fittings to secure the mud guards to their frame.

Building A Boat In The Lounge Update 21 - it's time for some action man! Th_883867ef0e214e19c9ea875116774f1a_zpsjnpt1fh5
Building A Boat In The Lounge Update 21 - it's time for some action man! D0488d3b7a0c4f58e216d2060360e90e_zps1qn9hte5

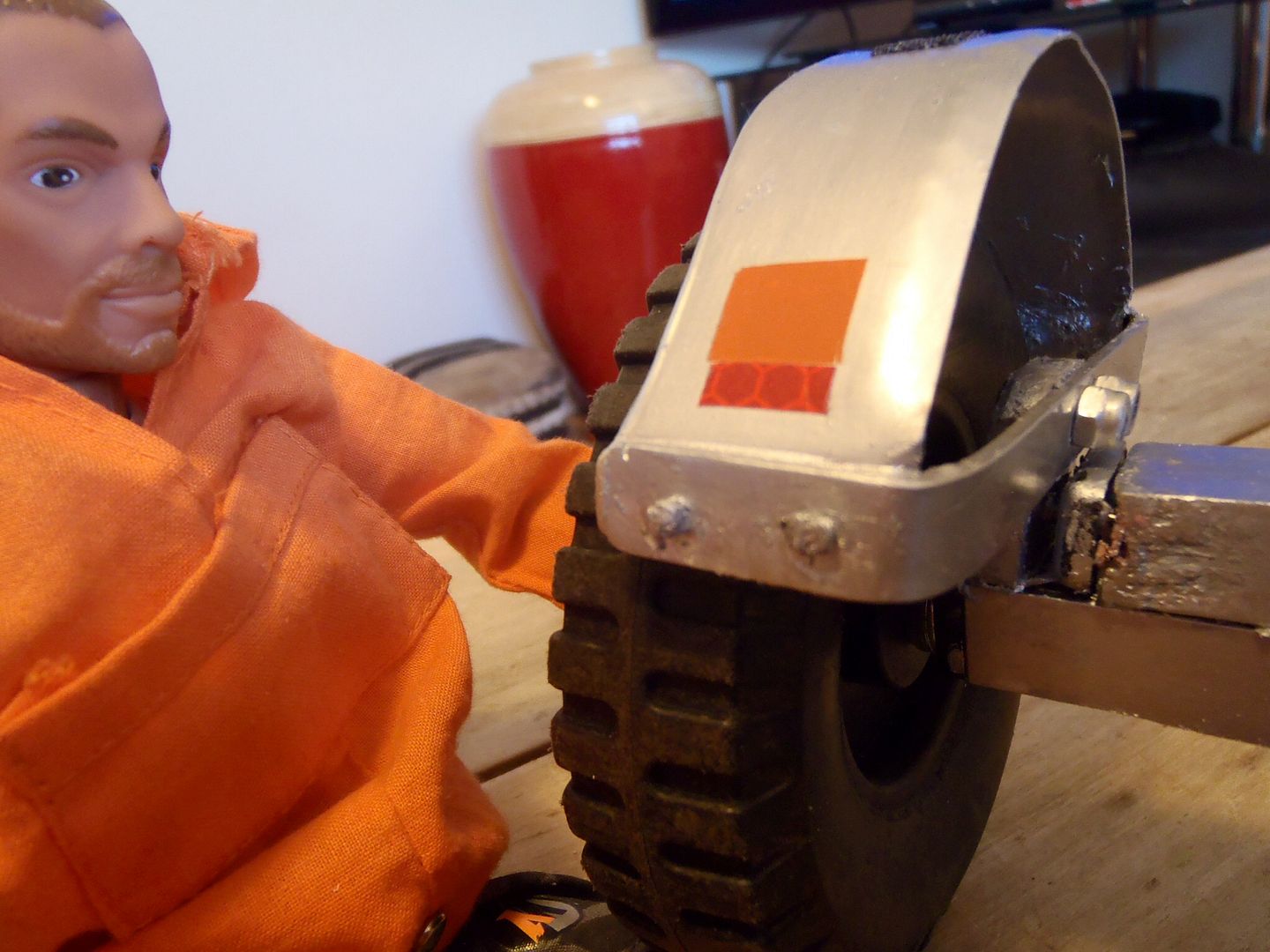

I made the mud guards from copper strip bent around a roll of tape and the edges curled over bit by bit with pliers, a bit of finishing is needed yet

Building A Boat In The Lounge Update 21 - it's time for some action man! 231f3be8d33c1e447bebfe6556b42619_zps1r5igqeg

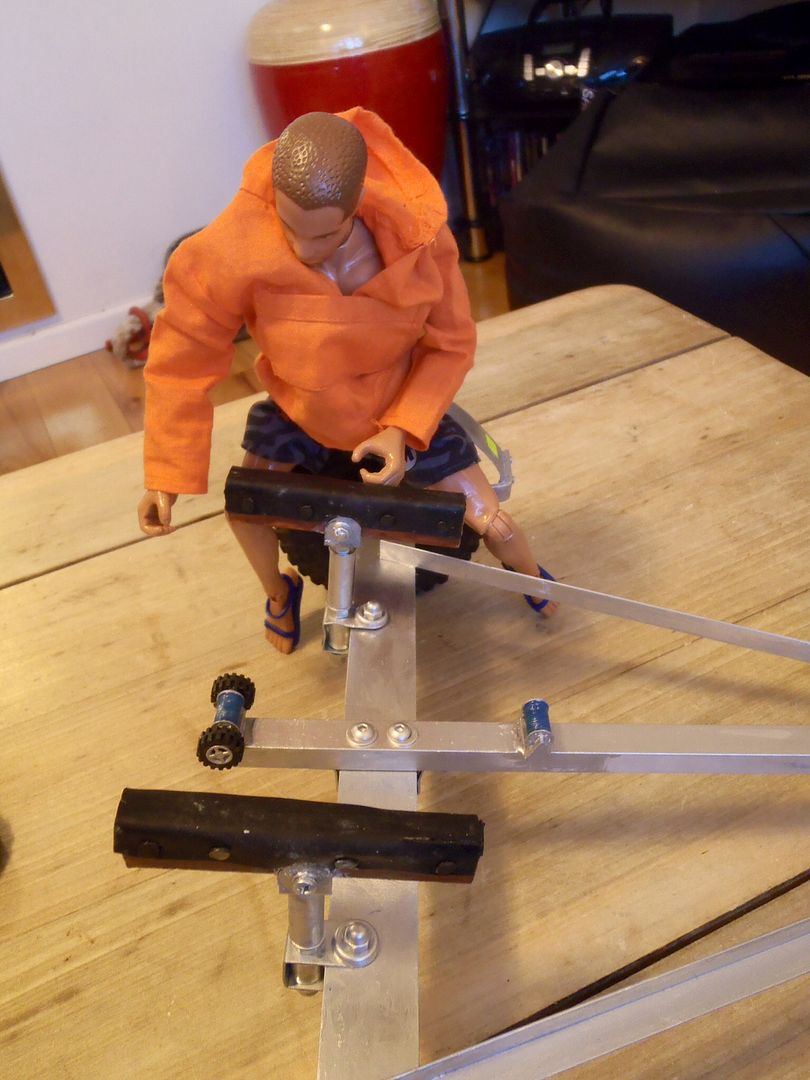

The axle is deliberately further back than on the real one because one of the outstanding jobs on Notbad 1 is moving the axle back to improve the balance
Building A Boat In The Lounge Update 21 - it's time for some action man! 0f6f11609050fa2fc44aa9bf4a587e45_zpsuiapw3zj


Building A Boat In The Lounge Update 21 - it's time for some action man! Th_462d0859cd090f33f622c933fde59fa1_zpsrrydprm7

Building A Boat In The Lounge Update 21 - it's time for some action man! B8ba6a9107e92028185f0d0b4287ac03_zpsqcij4wxy

Building A Boat In The Lounge Update 21 - it's time for some action man! 29e1270c185b6dcceba5e736fe483a13_zpssyhqzzzw

With most of the other bits and fittings lined up ready hopes of fully finishing this project by the new extended deadline of Spring 2016 are not yet extinguished!

Small things make for perfection and there's more work to do  but I'm happy enough with the result so far. I could keep on improving it ( I'd like to add nuts to the wheel hubs ) but that's the trailer near enough sorted for now.
Building A Boat In The Lounge Update 21 - it's time for some action man! 13d28e613bdd3437daf81f2c5d999bfc_zps6kxyirws

I hope Notbad appreciates my help,

Now the Sunny Rhyl Species Hunt has started finding spare time for getting on with finishing the hull is going to have to compete with the fishing action man!

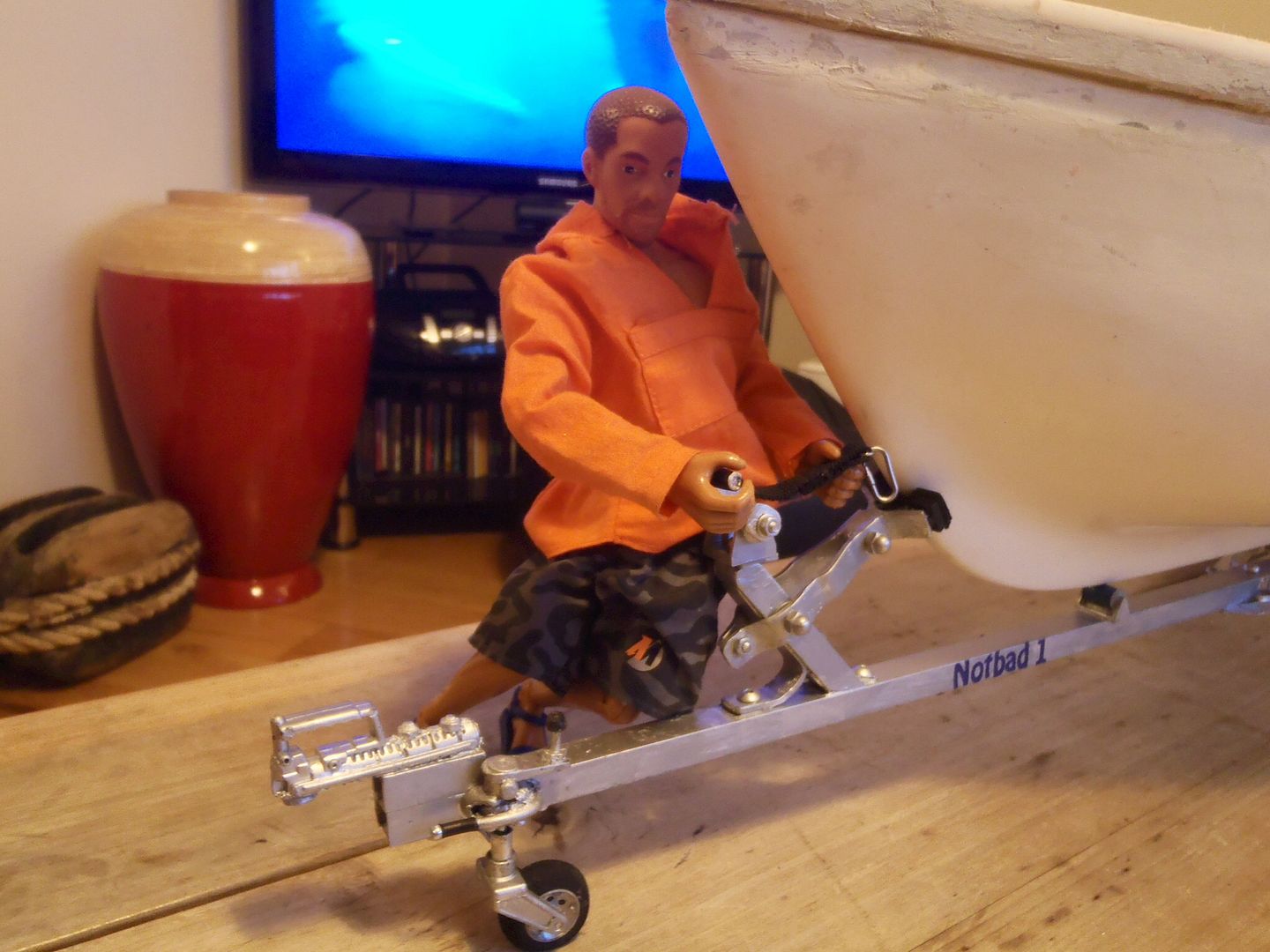

Building A Boat In The Lounge Update 21 - it's time for some action man! 77e8adaf212c9b33a76b8ff7c4497945_zpsdj5z5e5l
Building A Boat In The Lounge Update 21 - it's time for some action man! 8c59b6868bddc055efc05fbac10eb800_zpsmpgcp47p

Building A Boat In The Lounge Update 21 - it's time for some action man! C4aac5641d7938abf372a8c6bdf7baac_zps0xd2s8wm

Right anyone fancy a Barbie?

Building A Boat In The Lounge Update 21 - it's time for some action man! Th_GEDC0011
